Inverse Kinematics

Simulation of a 2-segment arm, calculates arm joint angles based on input (x,y) coordinates. Description behind the calculations in my inverse kinematics angle joint calculator tool

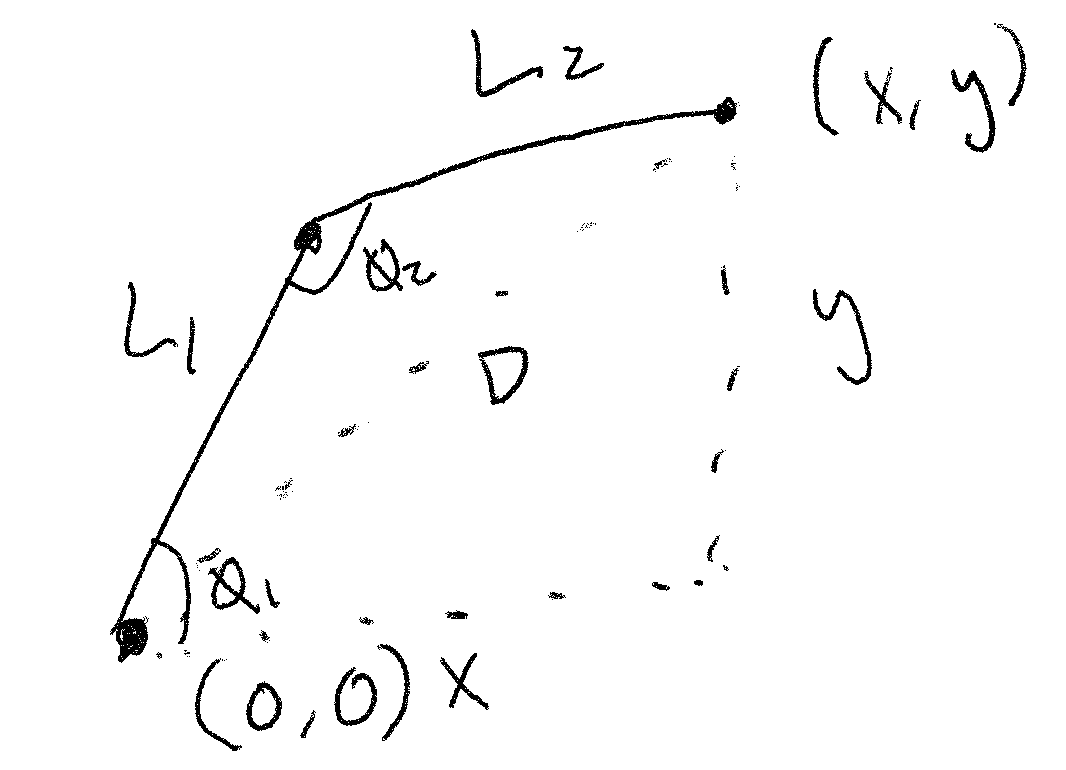

Step 1: Calculate the Distance the arm needs to stretch

First step is to calculate .

From the pythagorean theorem:

Step 1 note:

Compare   to arm segments total length:  to check if target location can be reached

Step 2: Calculate Joint #2 Angle

Next step is to calculate . This is the angle for the second joint.

From the law of cosines:

Step 3: Calculate Joint #1 Angle

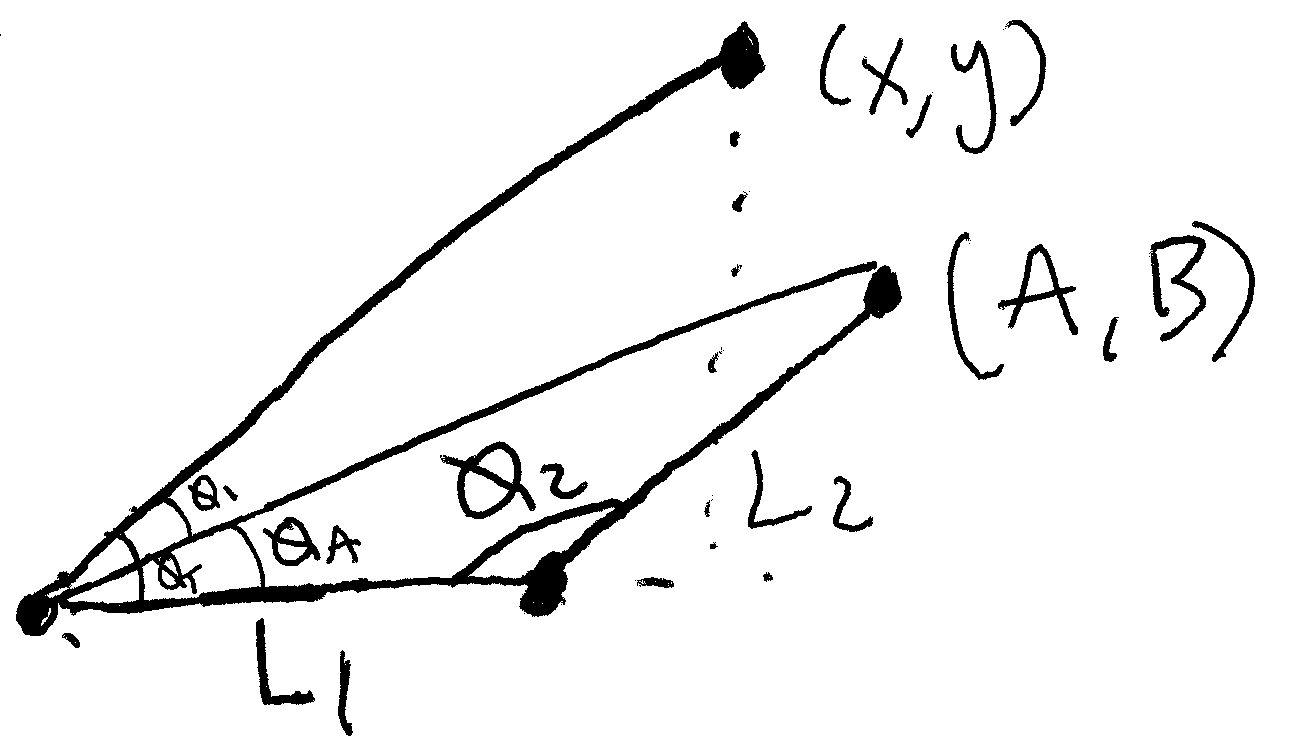

To calculate  we take the difference between an assumed position (A,B) where the L1 segment is at whatever position we have defined as 0˚, so in this case, laying along the +x axis.

Angles of Interest

: Joint #1 angle, our calculated result.

Theta “Target” is the angle that is made up from the origin to the target (x,y) coordinates.

Theta “Actual” is the angle that is made up from the origin to the end of the arm (A,B) when the L1 segment is at 0˚.

Calculating A and B:



Find the desired joint 1 angle by subtracting the target by the actual.
